50 BPM Mud/Guar Mixing Table

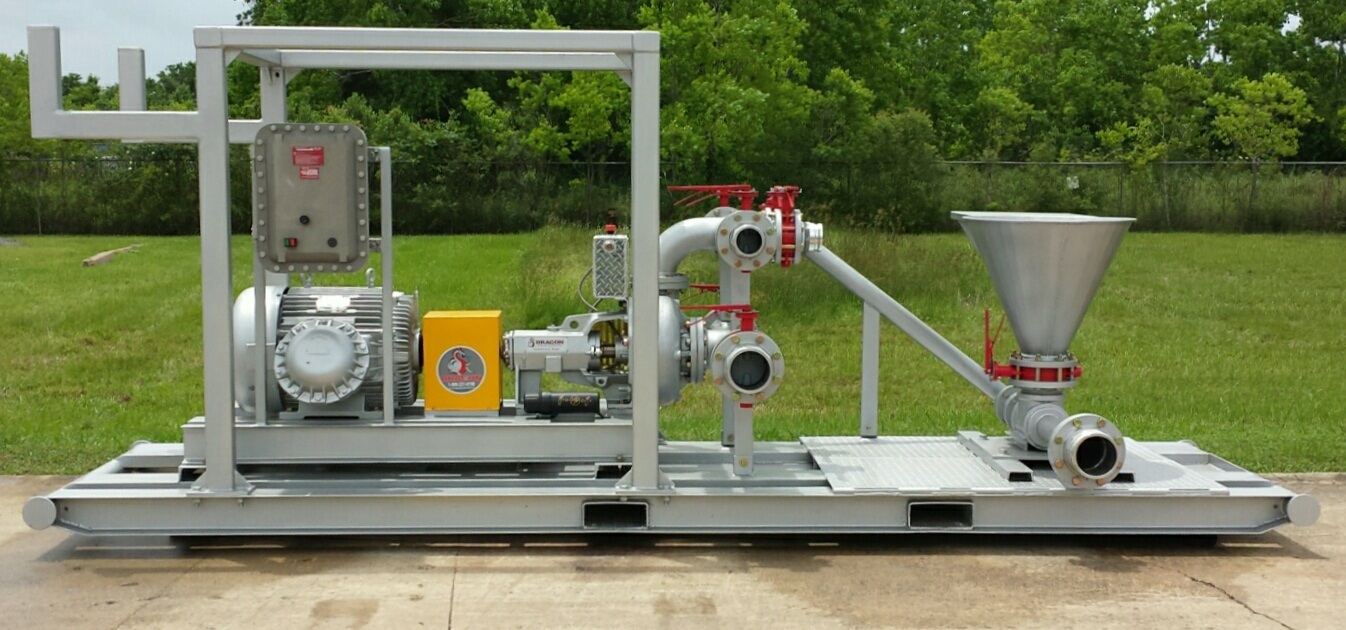

50 BPM Guar Gum & Mud Mixing System
SPECIFICATIONS
THE FOLLOWING COMPONENTS ARE INCLUDED
- 8X6 250 SERIES CENTRIFUGAL PUMP
- DRAGON SEAL SAVER
- SHAFT SAFETY GUARDS
- SAFETY YELLOW COUPLING GUARD
- TEE MANIFOLD FOR SUCTION
- TEE STYLE MANIFOLD WITH FRONT DISCHARGE
- ALL FLANGES THREADED WITH CAMLOCK AND BUTTERFLY VALVES
- 6” HOPPER
- OILFIELD SKID WITH DIAMOND PLATE AND LIFTING BAIL
OPTIONS
POWER UNIT OPTIONS:
DIESEL ENGINE:
- 173HP John Deere Tier III Diesel Engine
- Digital Insemination Panel
- 100gal fuel tank
- NACD PTO
50 BPM MUD / GUAR MIXING TABLE ELECTRIC ENGINE:
- 100HP Explosion Proof 460V 3PH 1800RPM Motor
- 100HP NEMA 7 explosion proof starter
