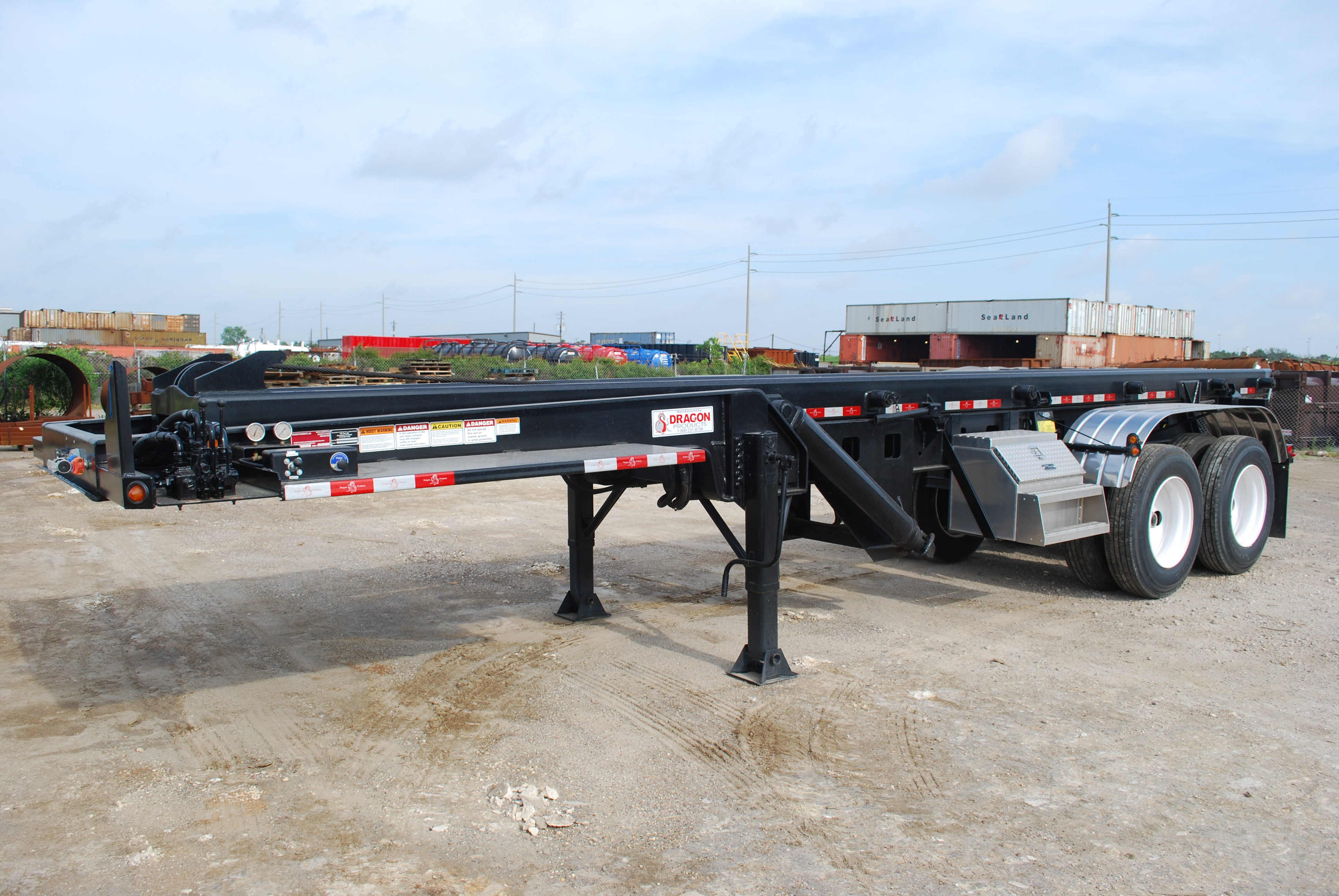

SINGLE CONTAINER TRAILER
SINGLE CONTAINER TRAILER

SINGLE CONTAINER TRAILER

SPECIFICATIONS

• Overall length: 34’ • Rail Length 31’- 3” • Rail Height 61”
• G.V.W.R: 72,000 lb.+
• Container Lengths: 18’ – 30’
• Main Winch: 60,000 lb. Capacity – Free Wheel Capable
• 7/8” Main Cable; Reeving Cylinders
• 7” Bore x 3” Rod x 120” stroke

• G.V.W.R: 72,000 lb.+
• Rail Configuration: Outside Roller 35” Outside
• Container Lengths: 18’ – 30’
• Trailer Main Frame: Fabricated I-Beam
• Flanges: 5/8” T1 Steel; Web: 1/4” T1 Steel
• Tilt Frame:
Structural Tubing: 10” x 4” x 1/2”
• Suspension: Air Ride – 15” Ride Height
23,000 lb. Capacity
• Axles: Hub Piloted Tandem
• Brakes: ABS (251M)
• Lift Cylinders: 6” Bore x 118” Stroke x 3
Stage – Double Acting Telescopic
• Main Winch: 60,000 lb. Capacity – Free Wheel Capable – 7/8” Main Cable; Reeving Cylinders – 7” Bore x 3” Rod x 120” stroke
• Hydraulic Valve: 2 Spool – 45 GPM with Pressure Relief
• Operating Pressure: 2,000 PSI Maximum

• Dump Angle: 47 Degrees

• Landing Gear: 2 Speed – 50,000 lb. Capacity
• ICC Bumper: Automatic Fold-Up – Air Actuated
• Side Rollers: 4” O.D. (6) per Side
• Ratchet Hold Downs: (2) per Side
• Rear Fenders: Stainless Steel
• Toolbox: 30” Aluminum with Step
• G.V.W.R. Rating: 80,000 lb.
• Trailer Main Frame: I-Beam Construction
• Trailer Main Frame Flanges: 5/8” x 5” A514 (T1)
• Trailer Web Section: ¼” A514 (T1)
• Tilt Frame: I-Beam Construction
• Tilt Frame Flanges: ½” x 5” A514 (T1)
• Tilt Frame Web Section: ¼” A514 (T1)
• Suspension: Watson & Chalin
(Air Ride Model: TA-302-15) 15” Ride Height
30,000 lb. Each Air Lift Axle (Front)
• Axles: Automatic slack adjusters, Outboard Drum 5” round 71 ½”
track 25,000 lb.
• Wheels: Steel 8.25 x 24.5
• Tires: 11R24.5 14 Radial Ply
• Brakes: ABS (Allied Bendix 2S\1M System)
• Front and Rear Fenders: Stainless Steel
