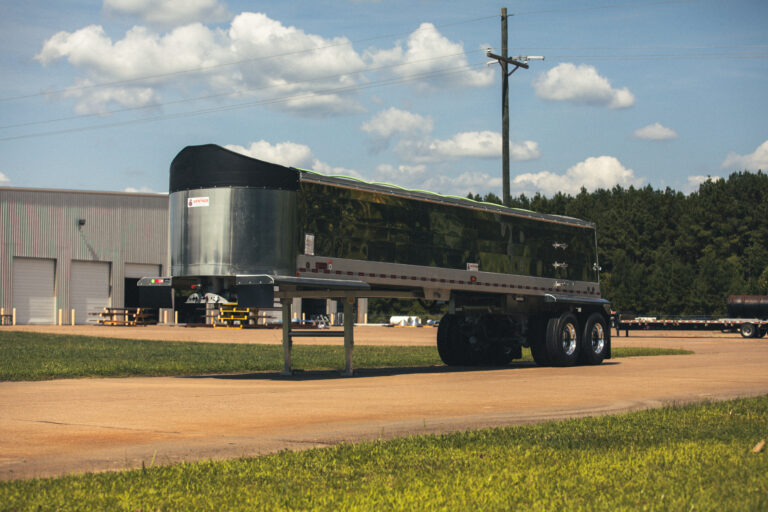

VANTAGE S-85 DUMP TRAILER

• BOX: 5454 H32 ALUMINUM,
    .195” THICK FLOOR,
    .145” THICK WALL,
    SINGLE PANEL,
    85” WIDE ON 102” WIDE AXLES
• FLOOR STRUCTURE: HIGH ALUM CHANNEL 15 1/2” ON CENTER

• HOIST: 8” DIA 5 STAGE SINGLE ACTING w263” STROKE

• WELDS: INTER NAL – AS WELDED, EXTERNAL,

• AUTOMATED EXTRUSION SEAM – SMOKE AND DISCOLORATION REMOVED

• REAR GATE: GRAVITY GATE AT 8 DEG PITCH. AIR ACTUATED LATCH CYLINDER WITH AUTO BODY RELEASE AND MANUAL VALVE.

COUPLER: STEEL PICKUP PLATE, WITH BUSHING

SADDLES

• LANDING LEGS: ALUMINUM TELESCOPING LEGS

• DRAFT ARM: ALUMINUM TUBING WITH

REINFORCED CHANNEL

• NOSE: ROUND SHAPE, .25” ALUM 5454-H32, WITH

HEAVY DOGHOUSE

STRUCTURE FOR HOIST SUPPORT, CAPPED WITH

STEEL BOLTED PLATE

• LIGHTS: FULL DOT LIGHTS, LED SEALED LIGHTS,

HARNESS AND JUNCTION BOX WITH TERMINAL

STRIP.

• SUSPENSION: TANDEM FRONT LIFT AXLE WITH

HENDRICKSON INTRAAX 17” RH AIRRIDE,

30,000LB PER AXLE

• WHEELS: 10 HOLE, ALUMINUM, HUB PILOT

• TIRES: 11R22.5 HIGHWAY TREAD

• BRAKES: 16 1/2 X 7 WITH SPRING PARKING, AUTO

SLACKS, WABCO 4S-2M ABS SYSTEM

• BUSHINGS: ALL JOINTS WITH GREASABLE

FITTINGS

• MUD FLAPS: ANTI SAIL
